High-performance shade films Shade films for different applications.
RHODESHADE combines solar heat protection, glare control, daylight quality and transparency in a single material for interior shading.
Product Portfolio
One material.
Many strengths.
Every building project has different solar control priorities. Some require maximum heat rejection, while others focus on daylight, visual comfort, outward views or privacy.
SiGr01
Maximum glare and solar control
Reflective · transparent
For the highest heat and glare protection requirements. Reflects a particularly high proportion of solar radiation while preserving clear outward views.
SiGr02
Strong solar control with clear views
Reflective · transparent
A balanced combination of heat and glare protection, usable daylight and clear outward views.
SiGr07
More daylight and high transparency
Reflective · transparent
High daylight transmission with balanced glare control and excellent outward visibility.
SiWh00
Solar control and blackout
Reflective · blackout
Very high solar energy rejection and complete privacy for applications where no outward view is required.
GrGr02
Strong glare control without visible reflection
Non-reflective · transparent
Low light transmission for strong glare control – with a subtle exterior appearance and clear outward views.
GrGr08
Maximum daylight
Non-reflective · transparent
High light transmission for bright rooms, good glare protection and excellent outward visibility.
Performance at a glance
| Type | Category | LT | SR | UV | TSER* | SC* | Glare | Heat | Energy savings |
Clear view |
|---|---|---|---|---|---|---|---|---|---|---|
| SiGr01 | reflective, transparent | 1% | 83% | 99% | 87% | 0.15 | ++ | ++ | ++ | ++ |
| SiGr02 | reflective, transparent | 3% | 73% | 97% | 80% | 0.23 | ++ | ++ | ++ | ++ |
| SiGr07 | reflective, transparent | 8% | 57% | 93% | 68% | 0.37 | + | + | + | ++ |
| SiWh00 | reflective, blackout | 0% | 83% | 100% | 87% | 0.15 | ++ | ++ | ++ | – |
| GrGr02 | non-reflective, transparent | 3% | 23% | 99% | 51% | 0.56 | ++ | o | o | ++ |
| GrGr08 | non-reflective, transparent | 8% | 18% | 100% | 43% | 0.66 | + | o | o | ++ |
Performance classification: ++ = very good; + = good; o = medium; – = none
LT
Light transmission
SR
Solar reflection
UV
UV block
TSER
Total solar energy rejection
SC
Shading coefficient
*Values shown are based on use in combination with 4 mm clear glass. Performance values may vary depending on glazing configuration and installation conditions. Detailed technical data sheets are available for all RHODESHADE shade films.
Core benefits The full spectrum of performance.
Glare protection
Visual comfort without darkness.
- Filters harsh sunlight and reduces screen glare
- Maintains comfortable indoor light levels
- Preserves daylight and outward visibility
- Creates comfortable work and learning spaces
Heat protection
Less heat gain. More thermal comfort.
- Reflects solar radiation
- Reduces solar heat gain and overheating
- Maintains indoor comfort
- Lowers cooling demand
Clear views
Visual connection to the outside.
- Provides clear outward visibility
- Provides daytime privacy
- Supports healthy circadian rhythms
- Maintains visual comfort and transparency
Energy savings
Lower energy demand. Better building performance.
- Summer: blocks heat, reduces cooling needs
- Winter: adds insulation and slows heat loss
- Cuts HVAC usage across all seasons
- Supports building energy and decarbonization goals
UV protection
Invisible but essential.
- Blocks nearly 100 % of harmful UV radiation
- Protects interiors from fading and damage
- Reduces occupants' exposure to UV radiation
- Helps preserve interior materials over time
Natural daylight
Bright, balanced and comfortable.
- Preserves the full spectrum of daylight
- Balances brightness and contrast
- Keeps the light natural and vibrant
- Improves mood and reduces fatigue
Selection Guide
Different requirements.
The right solution.
RHODESHADE films can be used in all common building types. The requirements determine the film.
Selection Criteria
- Solar and glare control
- Daylight and transparency
- Privacy or blackout
- Glazing type and orientation
- Dimensions, room use and operation
The selected film is finally checked against the actual glazing and system configuration.
Typical Requirements
- High-rise & commercial – glare, cooling demand and daylight
- Education – visual and thermal comfort
- Healthcare – patient comfort and daylight
- Museums & cultural buildings – daylight and UV protection
- ATCTs & VCRs – visibility and contrast
- Residential – comfort, UV protection and privacy
Typical applications
High-rise & commercial
Better workspaces through better solar control.
ChallengeExcessive glare and rising cooling demand.
SolutionIntelligent solar control without sacrificing daylight.
ImpactGlare-free workspaces, improved visual comfort, lower cooling demand, reduced operating costs, better workplace quality.
Education
Smart daylight for smarter learning.
ChallengeGlare and visual distraction.
SolutionBalanced daylight and controlled solar energy.
ImpactImproved concentration, glare-free environment, comfortable classroom temperatures, better learning environments, reduced cooling demand.
Healthcare
Natural light. Clean and comfortable.
ChallengeHeat gain, glare and sensitive indoor environments.
SolutionSolar control combined with access to natural daylight.
ImpactImproved patient comfort, reduced solar heat gain, daylight exposure, support for healthy circadian rhythms, easy-to-clean surfaces.
ATCTs & VCRs
Clear vision. Maximum safety.
ChallengeExtreme glare and demanding visibility requirements.
SolutionMaximum visibility with controlled daylight.
ImpactCrystal-clear, distortion-free views; uninterrupted sightlines for ATC operations; reliable 360° visibility with reduced glare; high contrast, even in direct sunlight; greater visual comfort and operational safety.
Residential
Live comfortably. Save year-round.
ChallengeSolar heat gain, glare and UV exposure in living spaces.
SolutionControlled light and solar energy management for homes and apartments.
ImpactReduced summer cooling demand and improved winter insulation; energy savings on heating and cooling; UV protection to prevent fading of interiors; clear views and natural daylight; improved comfort in living spaces.
Evaluate RHODESHADE for your project.
Assess the material with our sample set and combine your impression with technical data and project-specific selection advice.
Processing & integration Engineered for different systems.

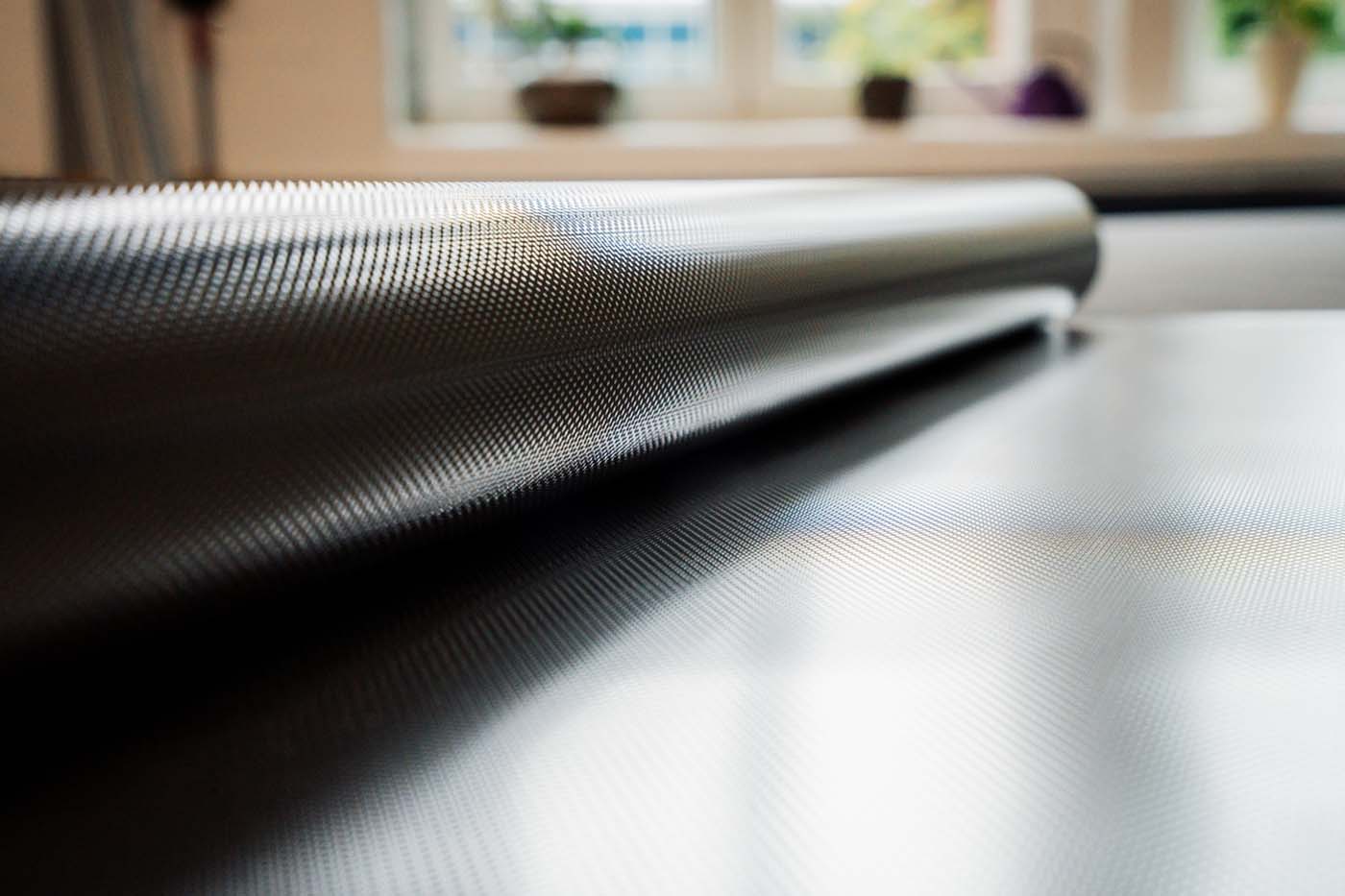

RHODESHADE films are slim and lightweight, making them particularly suitable for compact roller shade systems and project-specific formats.
Documentation, references & downloads Technical documents for your planning.
Current product data sheets, performance comparisons, test reports and selected references help you choose the right shade film for your project.
Data Sheets
Film-specific technical data for the sun control films.
Tests
Classification by Fraunhofer ISE according to EN 14501:2021, plus EN 14500, EN 410 and NFPA 701.
References
Completed projects with RHODESHADE films.
